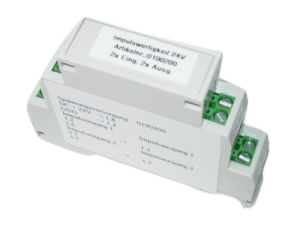

Impulse interface 2x2 inputs, 2 outputs

The impulse interface converts spike and square impulse into square impulse with an accurately defined low resting potential. This impulse interface interconnects 2 separate inputs, each with 2 different inputs, into 2 separate outputs.
Remarkable is the fact that inputs from an impulse encoder with a spike signals are converted into easy to read square impulse.

Technical Data
Power supply: 24V
Inputs: 2 x 2
Input signal: 5V - 24V / Spike, Square
Outputs: 2
Output signal: 2.7V - 3V / Square with low resting potential
Dimensions (w x h x d): 17 x 57 x 85mm
Fitting: Top-hat rail IEC/EN 60715, 35mm
