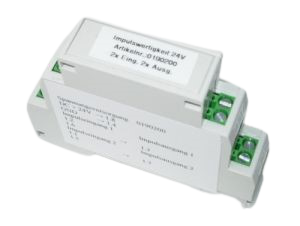

The impulse interface converts spike and square impulse into square impulse with an accurately defined low resting potential.This impulse interface interconnects 4 separate inputs into 1 output.
Remarkable is the fact that inputs from an impulse encoder with a spike signals are converted into easy to read square impulse.
Technical Data
Power supply: 24V
Inputs: 4
Input signal: 5V - 24V / Spike, Square
Outputs: 1
Output signal: 2.7V - 3V / Square with low resting potential
Dimensions (w x h x d): 17 x 57 x 85mm
Fitting: Top-hat rail IEC/EN 60715, 35mm
